Hi, all,

The staurolite discussion a few weeks ago got me thinking about a thin
section I've had around for about 25 years. Two thin sections, actually,
with grid-twinned staurolite. It's only four grains in one section, and one
in another, out of maybe 50 or 100 staurolite grains. I don't have any
analyses, but these are kyanite-garnet schists from Vermont, USA. I've
never read anything about grid twinning, though I think I have read about
orthorhombic to monoclinic transformation.

Does anyone know anything about this? Is it worth looking into further?

Thanks!

Kurt

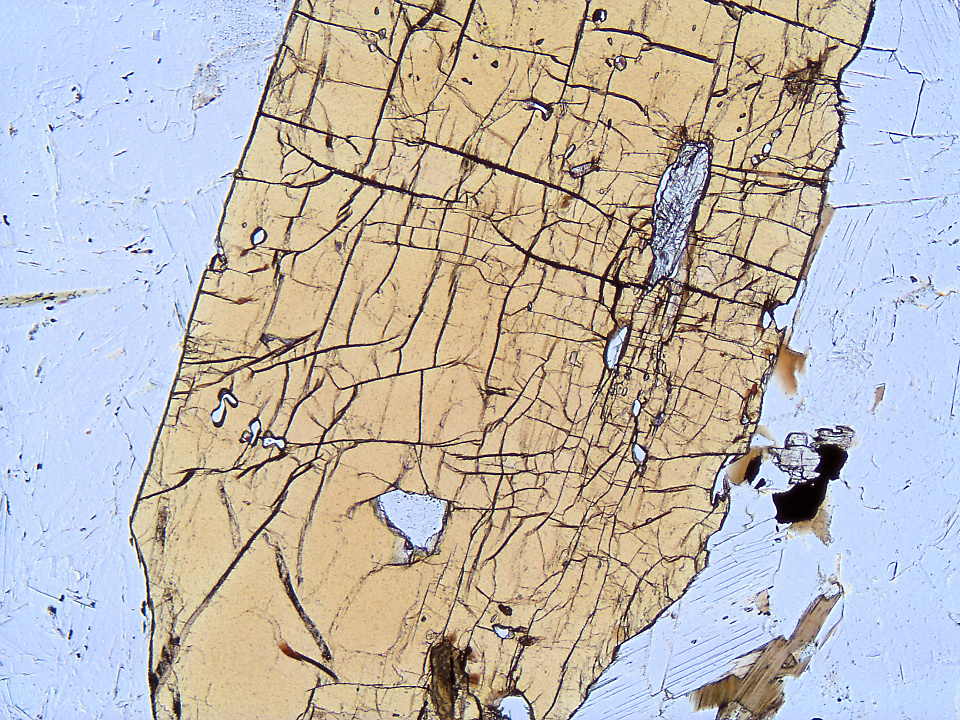

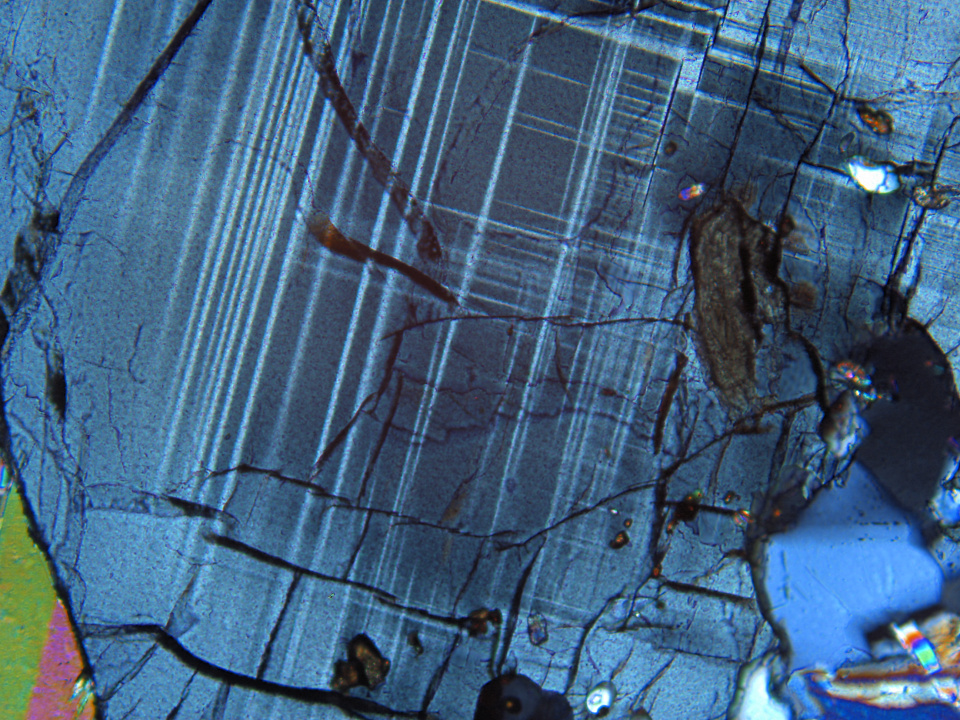

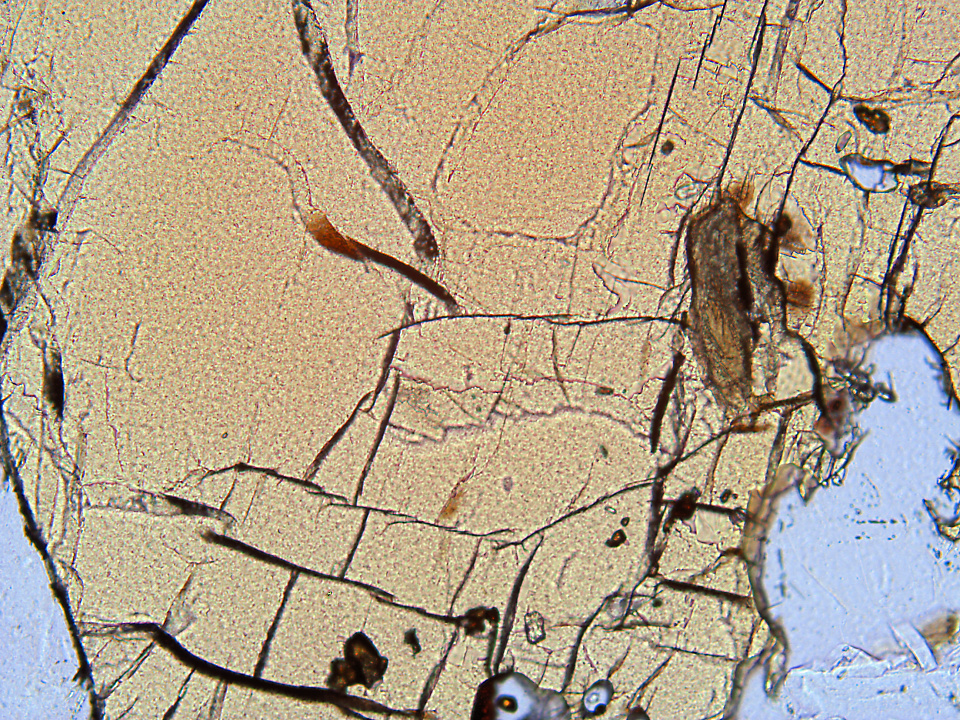

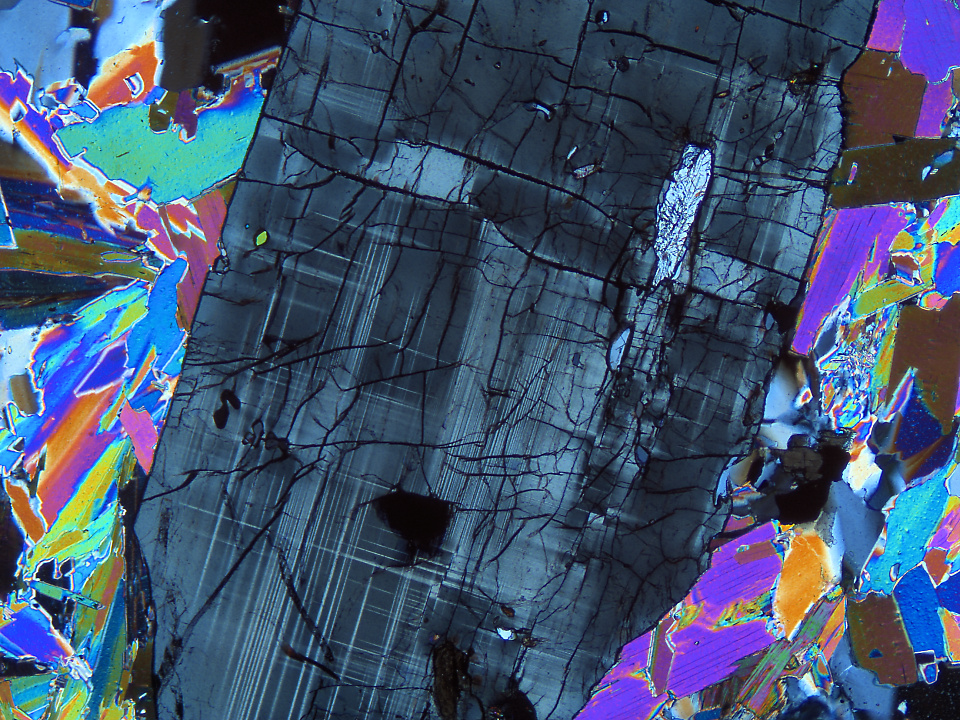

p.s. Field widths in the images below are 3 mm for the first two, and 1.2
mm for the second two.

[image: 1.jpg]

[image: 2.jpg]

[image: 3.jpg]

[image: 4.jpg]

Kurt Hollocher
Geology Department
Union College
807 Union St.
Schenectady, NY  12308-3107
USA
518-388-6518
Fax: 518-388-6417
http://minerva.union.edu/hollochk/kth/index.html

Hi, all, The staurolite discussion a few weeks ago got me thinking about a thin section I've had around for about 25 years. Two thin sections, actually, with grid-twinned staurolite. It's only four grains in one section, and one in another, out of maybe 50 or 100 staurolite grains. I don't have any analyses, but these are kyanite-garnet schists from Vermont, USA. I've never read anything about grid twinning, though I think I have read about orthorhombic to monoclinic transformation. Does anyone know anything about this? Is it worth looking into further? Thanks! Kurt p.s. Field widths in the images below are 3 mm for the first two, and 1.2 mm for the second two. [image: 1.jpg] [image: 2.jpg] [image: 3.jpg] [image: 4.jpg] -- Kurt Hollocher Geology Department Union College 807 Union St. Schenectady, NY 12308-3107 USA 518-388-6518 Fax: 518-388-6417 http://minerva.union.edu/hollochk/kth/index.html
C
chopin
Tue, Apr 6, 2021 5:07 PM

Hi Kurt,

with Gilla Simon, Volker Schenk and Michael Czank we observed something
similar in a few magnesiostaurolite [XMg 0.77 to 0.96] grains from UHP
rocks of the Dora-Maira massif, Western  Alps, also some 25 years ago.
Actually the grid was not as straight as yours and was closer to the
tweed texture of microcline. Only in a few sections among several
others. We felt this should be somehow connected to the monoclinic to
orthorhombic transition and possibly varying H content, but were unable
to pin this much further down, even with TEM work. Here is what we wrote
in an abstract by Simon, Chopin and Czank for the 1998 IMA in Toronto:
"Some of these staurolites  show domains reminiscent of
'cross-hatched' twinning. Universal-stage measurements revealed one or
two 'lamellar' systems, one of which is almost perpendicular to nbeta
and the other is rotated by 80-92° with respect to the first one.
TEM investigations show lamellae parallel (001) which are a few
unit-cells thick and irregularly distributed. The clear presence of
otherwise pseudoextinct 00l (l = 2n+1) diffraction spots indicates a
different cation distribution within the lamellae. Other lamellae are
parallel (100) and have various thicknesses (10 nm-0.3 µm). They are in
'twin relation' with the matrix, however additional spots parallel a*
indicate a new structural variant of staurolite with a superstructure
having a = 2aSt. Interestingly, all these lamellae disappear under
exposure to the electron beam, suggesting that proton ordering may be
one of the reasons for the formation of these lamellae."

May be worth digging further!
With best wishes
Christian
